Google Analytics Report with .NET Core

Posted

You should start exploring the Google Analytics Reporting API with the official documentation:

https://developers.google.com/analytics/devguides/reporting/core/v4 https://developers.google.com/api-client-library/dotnet/get_started

If you need to access Google Analytics reports from C #, you can do this using a library from Google. Create a .NET Core console project and connect the “Google.Apis.AnalyticsReporting.v4” nuget package to it.

To be able to access Google Analytics reporting data, you will need to create an application in the console https://console.developers.google.com/ If this is a project for personal use, you don’t have to worry about filling out all the fields: the browser will give you a warning, but you can go ahead and allow access.

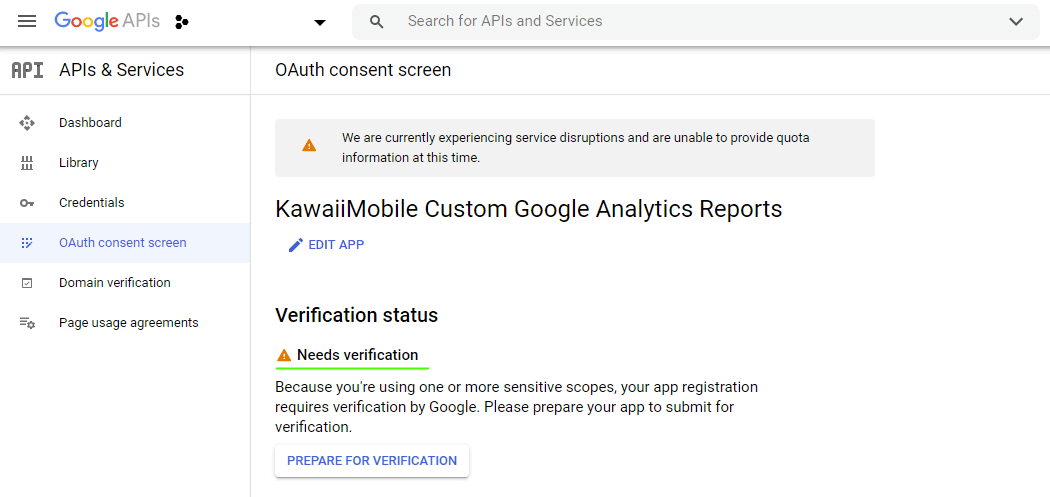

OAuth screen setup

“Prepare for verification” is worth completing if you are making a project for public use (not your personal).

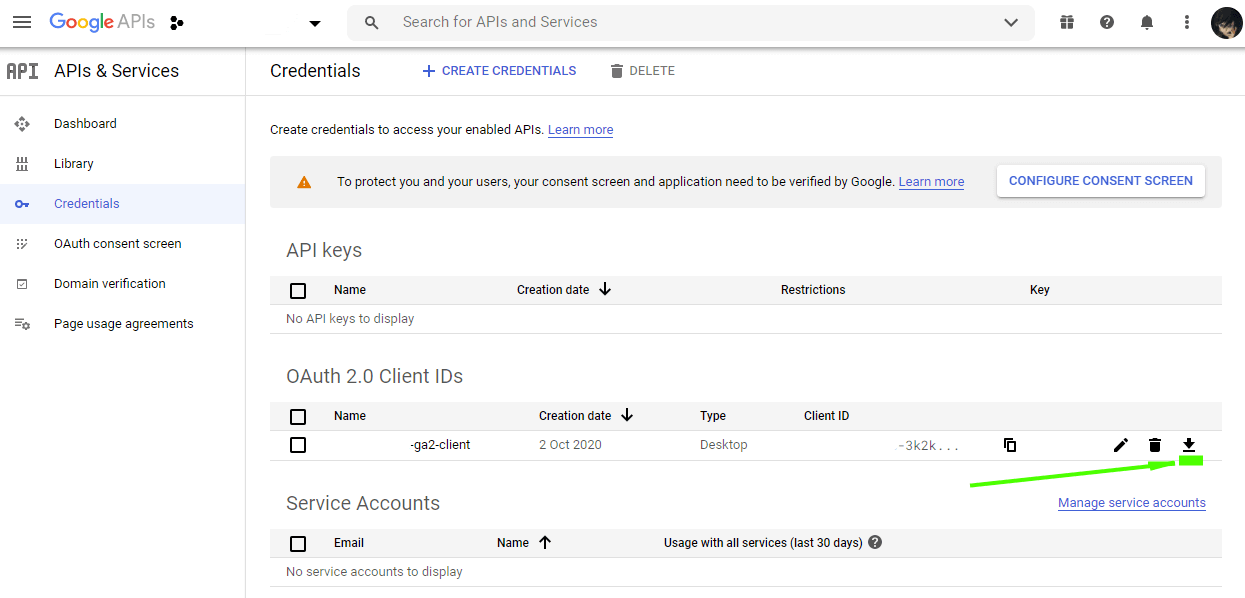

Go to the section “Credentials”, and download the secret file client_secret_XXXX.apps.googleusercontent.com.json: Download json secret file

Even if this is a test project, I recommend not explicitly including such a file in it (so as not to accidentally commit it to github), but place it in a separate folder on the machine. The example below uses a special environment variable that stores the path to the secret file.

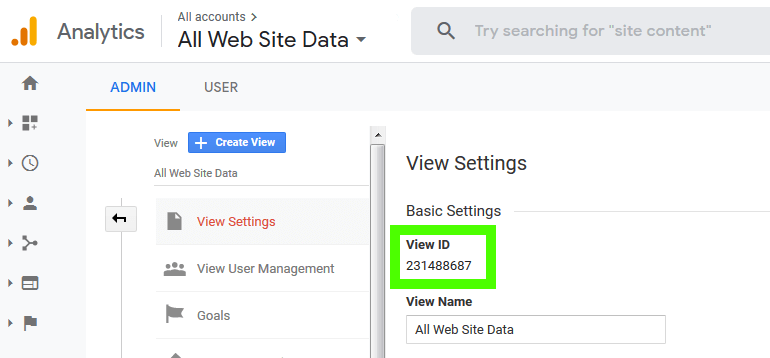

Go to the Google Analytics admin panel and copy the View ID - it will be needed for programmatically building the report:

Google Analytics View ID for your report

Example project on GitHub

In my repository https://github.com/AndrewSalko/kawaii.ga.analyser you will find an example project. Below I will describe certain points.

Using OAuth to access API

I put the client_secret_XXXX.apps.googleusercontent.com.json file in the “secret folder” on the machine, and the full path to it in the environment variable. Below I read it and use the AuthorizeAsync method:

string jsonAPIFile = Environment.GetEnvironmentVariable(ENV_VAR_JSON_SECRET_FILE);
if (string.IsNullOrEmpty(jsonAPIFile))
{
	Console.WriteLine("Environment variable not found:" + ENV_VAR_JSON_SECRET_FILE);
}

UriBuilder uri = new UriBuilder(Assembly.GetExecutingAssembly().CodeBase);
string startPath = Path.GetDirectoryName(Uri.UnescapeDataString(uri.Path));

string jsonAPIAuth = Path.Combine(startPath, jsonAPIFile);

UserCredential credential;

using (var stream = new FileStream(jsonAPIAuth, FileMode.Open, FileAccess.Read))
{
	string credPath = Path.Combine(startPath, "creds.json");

	credential = GoogleWebAuthorizationBroker.AuthorizeAsync(
						GoogleClientSecrets.Load(stream).Secrets,
						_SCOPES,
						"user",
						CancellationToken.None,
						new FileDataStore(credPath, true)).Result;
}

var init = new BaseClientService.Initializer
{
	ApplicationName = "kawaiimobile-ga2",
	HttpClientInitializer = credential
};

var service = new Google.Apis.AnalyticsReporting.v4.AnalyticsReportingService(init);

We use the AnalyticsReportingService service object to build reports.

See the VisitedPagesReportBuilder.cs for details.

To build a report on page visits, we need a date range and a set of metrics:


// Create the DateRange object.
DateRange dateRange = new DateRange()
{
	StartDate = ReportDate.GetDateAsString(startDate),
	EndDate = ReportDate.GetDateAsString(endDate)
};

// Create the Metrics object.

Metric pageViewsMetric = new Metric { Expression = "ga:pageviews", Alias = "Page views" };
Metric uniquePageViewsMetric = new Metric { Expression = "ga:uniquePageviews", Alias = "Unique page views" };
Metric entrancesMetric = new Metric { Expression = "ga:entrances", Alias = "Entrances" };

//Create the Dimensions object.
Dimension dimensionPage = new Dimension { Name = "ga:pagePath" };

OrderBy order = new OrderBy
{
	FieldName = "ga:pageviews",
	SortOrder = "DESCENDING"
};

Use https://ga-dev-tools.appspot.com/dimensions-metrics-explorer/ to explore possible metrics.

Report request

ReportRequest reportRequest = new ReportRequest
{
	ViewId = _GAViewID,
	DateRanges = new List<DateRange>() { dateRange },
	Dimensions = new List<Dimension>() { dimensionPage },
	Metrics = new List<Metric>() { pageViewsMetric, uniquePageViewsMetric, entrancesMetric },
	OrderBys = new List<OrderBy> { order },
	PageToken = nextPageToken
};

List<ReportRequest> requests = new List<ReportRequest>();
requests.Add(reportRequest);

// Create the GetReportsRequest object.
GetReportsRequest getReport = new GetReportsRequest() { ReportRequests = requests };

// Call the batchGet method.
GetReportsResponse response = _Service.Reports.BatchGet(getReport).Execute();

Data acquisition cycle. You will need to parse and type the results:

var report = response.Reports[0];
var rows = report.Data.Rows;

foreach (var row in rows)
{
	string url = row.Dimensions[0];

	string valPageViews = row.Metrics[0].Values[0];
	string valUniqPageViews = row.Metrics[0].Values[1];
	string valEntrances = row.Metrics[0].Values[2];

	int pageViews = int.Parse(valPageViews);
	int uniqPageViews = int.Parse(valUniqPageViews);
	int entrances = int.Parse(valEntrances);

	var reportRow = new VisitedPagesReportRow(url, pageViews, uniqPageViews, entrances);
	reportRows.Add(reportRow);

}//foreach

In general, building Google Analytics reports programmatically is a fairly simple task, but it contains a number of important points for understanding - registering an application through the Google Console, as well as studying possible metrics through Dimensions & Metrics Explorer.
